Circuit Breaker Design Pattern

Your overall application’s performance might be strongly dependent on how the third-party services you integrated with are performing.

If some remote resource is currently experiencing performance troubles, your calls to this service could be hanged out waiting for a response until a timeout is occurred. Because of that issue the throughput of your service will be drastically decreased, which definitely will impact your end users’ experience.

In this situation a Circuit Breaker mechanism could prevent your system from such cascade performance impact.

Circuit Breaker Design Pattern Overview

The main idea here is to make your calls fail-fast if the remote resource’s calling ended up with a critical amount of failed attempts.

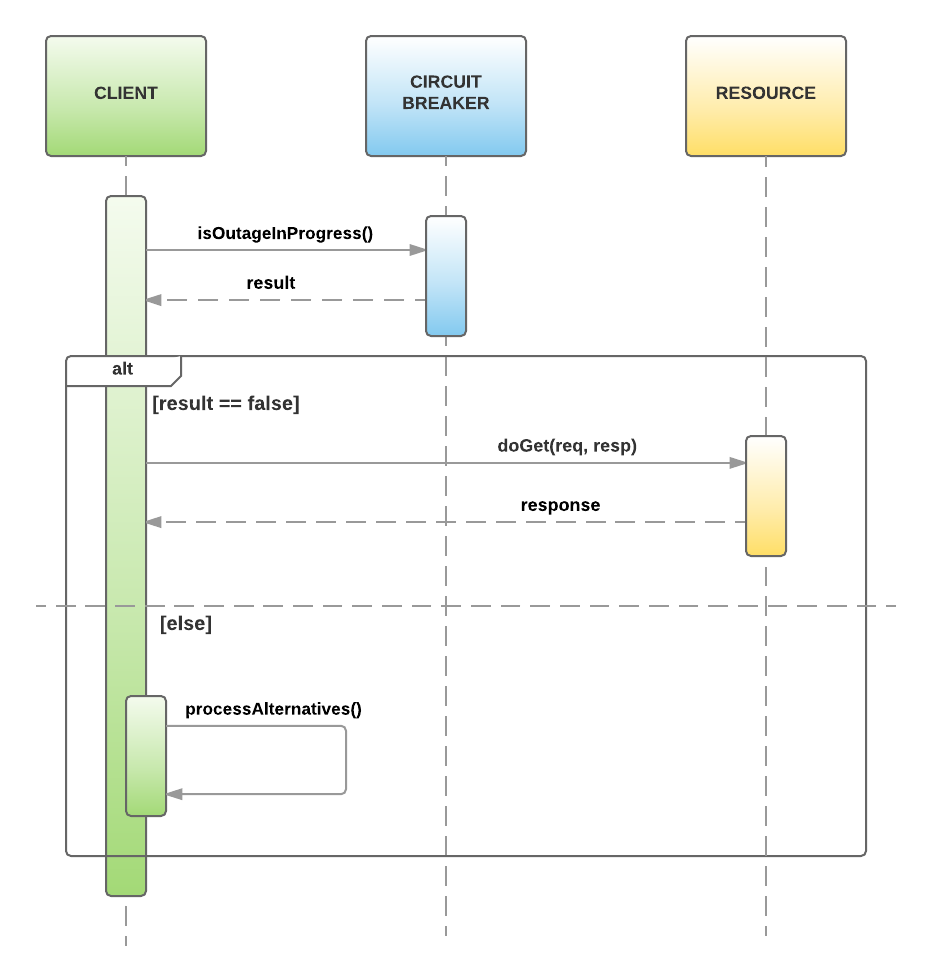

In this case the Circuit Breaker mechanism will be switched to open state, which means outage is in progress. Since that there is no sense to keep calling the problematic resource, and an alternative flow could be used while outage is happening:

The Circuit Breaker will switch back to closed state after defined timeout. So, new attempts to reach out the resource will be taken.

Implementation Details

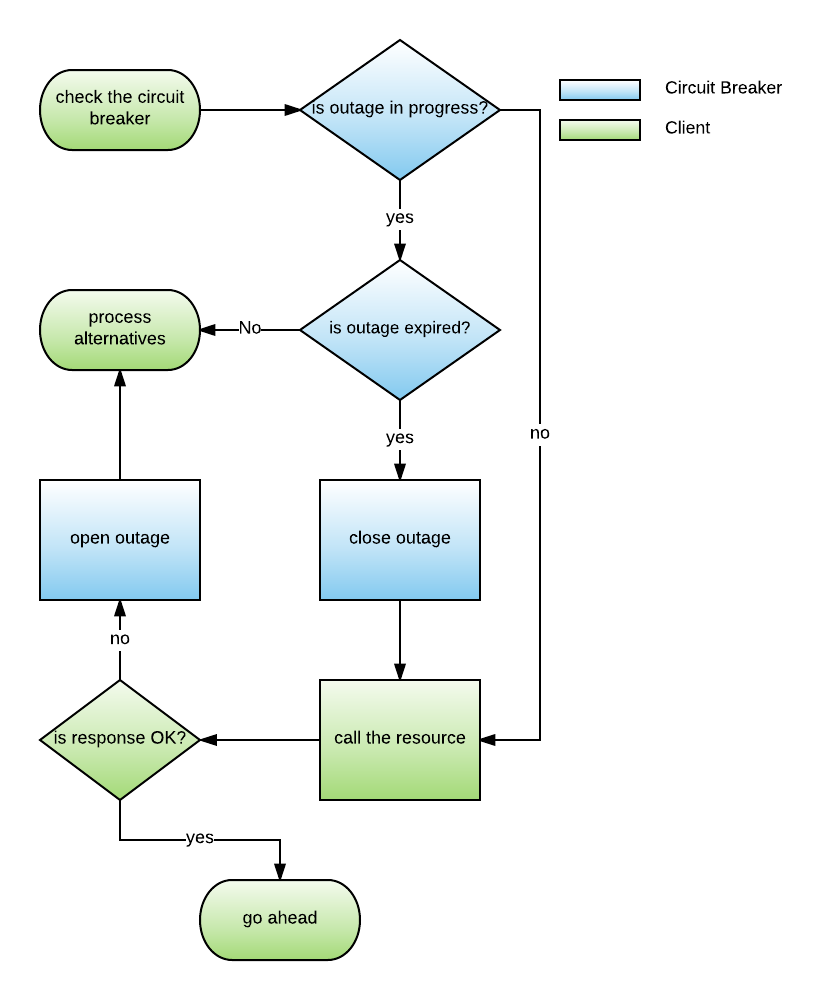

There is a simple implementation of the described Circuit Breaker design pattern. Basically, we’re keeping track the following information about failed attempts:

• failure attempts’ count - to have an ability to check whether a threshold is reached and the Circuit Breaker should be switched to open state.
• a time when the first failed attempt occurred - will help to maintain a time frame for the failures threshold.
• start time of the current outage - a time when the Circuit Breaker was switched to open state. It will help to check how long the current outage is happening.

The following basic API makes the usage of our Circuit Breaker really simple and straightforward:

• isOutageInProgress - checks if the Circuit Breaker is in open state
• requestOutage - requests the Circuit Breaker to be switched to open state

Here is an example with 5 failed calls threshold allowed within a one minute time frame. As soon as the threshold is reached, an alternative flow is being processed for the next 5 minutes:

SimpleCircuitBreaker circuitBreaker = new SimpleCircuitBreaker(5, 300000L, 60000L);
if (!circuitBreaker.isOutageInProgress()) {
    try {
        // make a call to the resource

    } catch (RuntimeException e) {
        circuitBreaker.requestOutage();
        // process alternatives
    }
} else {
    // process alternatives
}

Full implementation of the SimpleCircuitBreaker.java could be found in my GitHub repository.

Summary

The Circuit Breaker mechanism could help to protect your application from cascading failures and to provide a fallback behavior for potentially failing calls to external resources.
